Developing a Room Extension

Use

First step to develop an extension is to setup a new portal project, which also means to include the extension API and to add a service entry. Then the extension is configured in the extension registry. Next is to create a Java class for the extension, e.g. SampleExtension.java. The extension is provided with a resource bundle to make it displayable. The extension points and the input- and output parameters are listed and at last the methods validate, process, rollback and commit are added to make the extension executable.

Prerequisites

Although some steps can be performed in pure Eclipse also, it is strongly recommended to use the SAP NetWeaver Developer Studio for the development. Only the studio creates the correct par files for the portal deployment. The studio is part of your SAP NetWeaver package.

Procedure

...

       1.      Set up the project

                            a.      In the Developer Studio, define a new classpath variable.
Go to Window ® Preferences ® Java ® Classpath Variables ® New and add the deployment path of the portal:

PORTAL_HOME = <hd>\usr\sap\<instance name>\JC<instance no>\j2ee\cluster\server<no> \apps\sap.com\irj\servlet_jsp\irj\root\WEB-INF\portal

This path may differ between portal versions; you will find details in the portal documentation.

                            b.      To create a new Java project, select File ® New ® Project ® Portal Application.

                            c.      Open the properties of the project and go to Java Build Path.

You will notice that the studio has automatically added some portal libraries. For the extension development, additional libraries are required.

                            d.      Take the required libraries from an installed portal (EP 6.0 SP2 Patch 5 or higher). To add the libraries, click New Variable ® PORTAL_HOME ® Extend and take the libraries listed below:

·        PORTAL_HOME/portalapps/com.sap.netweaver.kmc.util/lib/ kmc.util.core_api.jar ·        PORTAL_HOME/portalapps/com.sap.netweaver.coll.shared/lib/ coll.shared.extension_api.jar ·        PORTAL_HOME/portalapps/com.sap.netweaver.coll.shared/lib/ coll.shared.roomobject_api.jar

                            e.      To access the API, a service reference in the portalapp.xml file of the project is also mandatory:

<application-config>   <property name="ServicesReference" value="com.sap.netweaver.coll.shared, ..."/> </application-config>

                              f.      Because the extension is a portal service, a service entry in the portalapp.xml file of the project is required. The service name can be chosen freely as long as it fulfils the Java naming conventions.

<service name="SampleExtensionService">    <service-config>       <property name="className" value="com.sample.SampleExtension"/>       <property name="startup" value="true"/>    </service-config>    <service-profile>       <property name="generic_classloader_registration" value="yes"/>       <property name="generic_service_key" value="someSampleGuid"/>    </service-profile> </service>

For at least one service in a portalapp.xml file the generic_classloader_registration must be activated, and there must be a generic_service_key defined which can be a GUID, the class name or anything else that is unique. See 3 how the extension uses this information.

       2.      Configure the Extension

The development project containing the extension must also deploy a Configuration Framework based configurable to the extension registry, which is located in the configuration path Collaboration -> Extension -> Registry. In this configurable, the extension id is defined. A common choice is to take the name of the class for the id. The property service is a combination of the par file name of your project plus the service name defined in the file portalapp.xml. Please note that the par file name and the service name may differ from the package name and the class name. It is a common mistake to use the package name and the class name here.

<Configurable configclass="Extension">     <property name="id"         value="SampleExtension"/>     <property name="service" value="com.sample.SampleExtensionService"/>     <property name="category"   value="room"/>     <property name="active"     value="true"/> </Configurable>

The configurable additionally defines a category, which must be “room” for room related extensions or “common” for unspecific extensions, that are used in the room. An extension is room related, if it accesses the Room API. The Concat extension e.g. is not room related, because it just concatenates two strings and does not access the Room API.

There is also an active flag in the configurable that is used to disable the extension. Disabling should be handled with care, because it corrupts templates using this extension. Early versions of the room do not validate the templates, so that there will be exceptions if they are used. Later versions (EP 6.0 SP10 or higher) validate the templates so that they are no longer used.

       3.      Create the Java Class

An extension runs as a portal service and therefore must implement the IService interface that is documented in the PRT User Guide. For simplification the extension can inherit the IService implementation from the GenericService class, which is part of the KM. The GenericService applies the attributes generic_service_key and generic_classloader_registration from the portalapps.xml. The class loader registration is required to use the resource bundles the extension needs to be displayed via name and description in the UI (see 4).

To further implement the extension, an IExtensionBuilderFactory provides specific objects like IParameterInfo and IExtensionResult. In the extension class, this factory is retrieved from the extension runtime:

import com.sap.netweaver.coll.shared.api.extension.IExtensionBuilderFactory;   public class SampleExtension extends GenericService implements IExtension {     private IExtensionBuilderFactory extensionFactory =     (IExtensionBuilderFactory)ExtensionRuntime.getFactory();

To get more information about extension objects, methods and parameters consult the Java Documentation of the Interfaces.

       4.      Make the extension displayable

Because an extension is displayed in the template creation wizard, it needs a resource bundle to translate name and description into the required language.

private static final String BUNDLE = "com.sample.bundles.SampleBundle"; private static final String ID = "sampleExtension";   public String getName(Locale locale) {     return ResourceBundles.getBundle(BUNDLE).getString("lbl_" + ID, locale); } public String getDescription(Locale locale) {     return ResourceBundles.getBundle(BUNDLE).getString("dsc_" + ID, locale); }

The bundle is located in the same project as the extension. The entries in the bundle file look like this:

lbl_sampleExtension=Sample Extension dsc_sampleExtension=Sample with explanations how to create an extension.

       5.      List the extension points

Extension points are steps in the life cycle of a room, where the extension is executed. There is no need for an extension to react on each extension point of a room; it depends on the purpose of the extension, which extension points are useful. For rooms, only the points provided in the class RoomExtensionPoint from the Room API can be used. The extension provides a list of points it can handle.

public IExtensionPoint[] getExtensionPoints() {    IExtensionPoint[] result = {       RoomExtensionPoint.ON_CREATE_ROOM,       RoomExtensionPoint.ON_DELETE_ROOM,       //...    };    return result; }

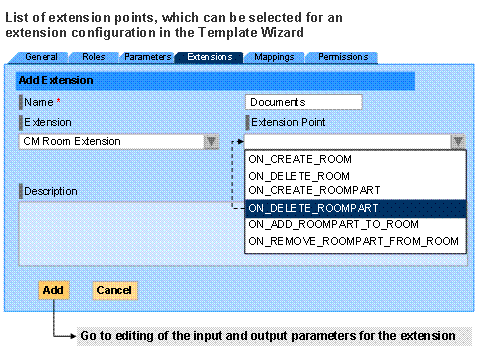

In the template wizard, this list of extension points is exposed to the template creator, who uses it to define the parameter mappings.

The extension developer should provide documentation to give the template creator an understanding of the extension and its best use.

       6.      List the input and output parameters

An extension also defines a list of input- and output parameters. For example, an extension that creates a folder may require a parent path and output a folder id. The parameter list depends on the extension point: if the folder is created in ON_CREATE_ROOM, the mentioned parameters are listed only for that point, while other parameters may be required for other points.

For the input parameters of an extension only available parameters can be used. The available parameters divide into two kinds:

¡        System parameters are contributed by the room. See Extension Points and Context to learn, which system parameters are available at which extension point. For example NEW_OWNER_OF_ROOM is available only when ON_SET_OWNER_OF_ROOM is processed.

¡        Template parameters are defined in the template. Only string parameters are allowed.
In Room Extensions – Design Time you find more information about the design time of an extension, specifically about the mapping of the input and output parameters of an extension to the set of available parameters in the template wizard.

The sample code shows how the input parameters are defined: The extension uses the extension factory to build up a list of IParameterInfo. All required input parameters must be listed, because only the listed parameters will be available for processing. This also holds for system parameters. It is a common mistake not to list the system parameters. Even if system parameter sounds like something that comes automatically, the listing is definitely mandatory.

public IParameterInfo[] getInputParameterInfos(IExtensionPoint extensionPoint) {     //ON_CREATE_ROOM     if (RoomExtensionPoint.ON_CREATE_ROOM.equals(extensionPoint)) {           IDisplayable parameter1Displayable = extensionFactory.createDisplayable(             PARAMETER1_ID, RESOURCE_BUNDLE, "lbl_" + PARAMETER1_ID,             "dsc_" + PARAMETER1_ID);           IParameterInfo[] result = {             extensionFactory.createInputParameterInfo(     parameter1Displayable,                 PARAMETER1.CLASS, VALUE_SET_PROVIDER_ID, OPTIONAL),             extensionFactory.createSystemParameterInfo(PARAMETER2_ID,                 PARAMETER2_CLASS, MANDATORY),             //...         };         return result;     }       //ON_DELETE_ROOM     //...       return null; }

To build up the IParameterInfo for a system parameter requires:

¡        A parameter id.

¡        The class of the parameter value, e.g. it can be validated if a user input is an integer. It also defines how the parameter is shown in the template wizard. A Boolean for example may be shown as checkbox.

¡        A Boolean to define if the parameter is mandatory or optional. The extension is expected to execute correctly, even if optional parameters are missing.

Because template parameters are used in the template, additional information is required:

¡        A displayable to show the parameter in the template wizard (see graphic below). In the sample template the displayable is created from the parameter id. Note: setting the resource bundle to null causes the displayable to show the keys instead of the translated text. Use this for testing only, keep in mind that the resource bundle is mandatory for translation.

¡        An optional value set provider id, to show the value set in a drop down list box. This exposes the possible values to the template creator and avoids typing errors or excluded values that cannot be computed. See Developing a Value Set Provider.

The set of available parameters in the template wizard encloses constants, external parameters and output parameters of extensions. While the mapping of a constant directly assigns the value, the mapping of external parameters or extension output generates a reference to a variable that is filled at run time, e.g. when the room or room part is created. The following table give syou an overview on the parameters available in the template wizard.

Parameter	Description
Constants	Constants are fixed by the template creator at design time. For example the parameter Access can be set to private or public. These values are offered in a drop down list box that is filled by a value set provider. Usually the extension developer knows, which input the extension can compute, and therefore will also develop the value set provider.
External parameters	These parameters are defined at design time, but the value is filled in manually at run time. The user who creates a room is prompted for the value.
Extension output parameters	These parameters are filled by the extension results. To use output parameters requires an overview over the whole template, because the availability of these parameters depends on the extension points at which they are computed. An extension can even use its own output as input for a later extension point. But attention: expecting an output as input for an earlier extension point necessarily causes an error.

See Room Extensions – Design Time for more information about how to avoid deadlocks and how to plan the parameter mapping.

       7.      Make the extension executable

When a room or a room part is created, the constant values as well as the parameter references are copied from the template to the room or room part context. During the lifetime of the room, the values and references are taken from the context and exposed to the extension, which processes the input and returns the result. The room or room part adds the result to the context, so that it is available when another extension point is processed.

Extensions implement methods to approach the described transactional behaviour. When an extension point is processed, first the validate method of all extensions is called. If one extension fails, the processing of the extension point terminates on error. If all extensions can validate, the process method is called in a second step. If one extension fails to process, all extensions are rolled back, otherwise all commit. See Room Extensions – Run Time for more information about the run time behaviour of an extension.

The sample code below shows, how the process method works. Dependent on the extension point, first the input parameters are drawn from the context, and then the output parameters are processed and added to the result. It is important, that the extension should throw the ExtensionException only, if the execution would cause irreversible damage to the room. If it throws an exception, this causes that a user action cannot be performed, e.g. a room cannot be created, a room part cannot be added or a user cannot be invited to the room. If a minor problem occurs that should not stop the user action, the application must handle it by itself. For example, it could copy a document to its folder that describes how the problem can be healed manually.

public IExtensionResult process(IExtensionPoint point, IExtensionContext context) throws ExtensionException {     //ON_CREATE_ROOM     if (RoomExtensionPoint.ON_CREATE_ROOM.equals(point)) {         //get parameters         String parameterValue1 = (String)context.getValue(PARAMETER1_ID);         String parameterValue2 = (String)context.getOptionalValue(PARAMETER2_ID);                 //do the processing         newObjectId = ...         //...                 //enable rollback         context.putValue(PARAMETER3_ID, newObjectId);           //return result         IExtensionResult result =             extensionFactory.createExtensionResult(IExtensionResult.OK);         result.putValue(PARAMETER3_ID, newObjectId);         return result;     }       //ON_DELETE_ROOM     //...       return null; }

The validate, rollback and commit methods are implemented in a similar way, no extra sample code is shown here.
