Standard Model

Definition

A model structure that defines the relationships between the following WCM objects:

Work clearance application

Operational WCD

Use

Use of the standard model is advisable if lockout/tagout is of primary importance and other safety measures, such as radiation protection, safety in the workplace, and fire protection, play a less significant role.

Structure

The architecture of the standard model is as follows:

This graphic is explained in the accompanying text

Note

Note the following assignment rules:

A work clearance application can be assigned to several orders. However, an order can only be assigned to one work clearance application. (Assignment rule R1)

A work clearance application can be assigned to several Operational WCDs, and vice versa. (Assignment rule R2)

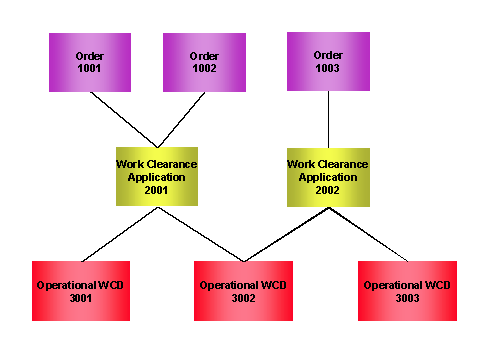

The following graphic illustrates the possible links:

This graphic is explained in the accompanying text
