Step 1: Set Up the Initial AppLocate this document in the navigation structure

We start by setting up a simple app for this tutorial. The app displays mock data only and mimics real OData back-end calls with the mock server as you have seen in the Walkthrough tutorial.

The structure and data model created in this step will be used throughout the rest of this tutorial. The initial app created in this step will be extended in the subsequent steps to illustrate the navigation and routing features of SAPUI5

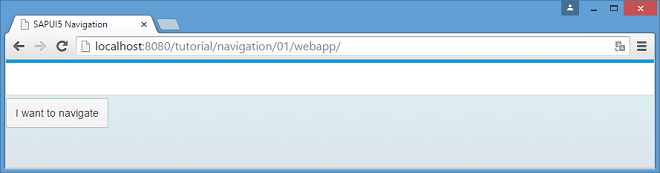

Figure 1: Initial app with a simple button

To set up your project for this tutorial, download the files for Step 1 from the Explored app in the Demo Kit under Navigation and Routing - Step 1. Copy the code to your workspace and make sure that the application runs by calling the webapp/index.html file.

Depending on your development environment you might have to adjust resource paths and configuration entries. The project structure and the files coming with this tutorial are explained in detail in the Walkthrough tutorial.

You should have the same files as displayed in the following figure:

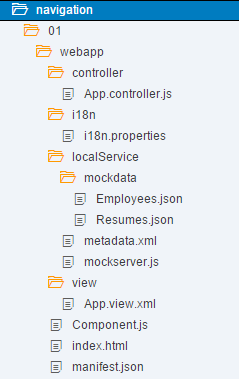

Figure 2: Folder structure with downloaded files

The content of the localService folders will not be changed in this tutorial. The i18n folder will always contain the file only. Therefore, we will show both subfolders collapsed in the following steps.

The Initial App

With the downloaded coding, you have an initial app with recommended settings that provides the basic features of an SAPUI5 app:

  • Home Page

    The home page of our app is defined in the webapp/index.html file. In this file we bootstrap SAPUI5 and tell the runtime where to find our custom resources. Furthermore, we initialize the MockServer to simulate back-end requests as we do not have a real back-end service throughout this tutorial. Finally, we instantiate the application component, assign it to a sap.m.Shell control, and place the shell into the body. The corresponding Components.js file in the webapp folder will be extended throughout this tutorial.

  • Data

    In the webapp/localService/mockserver.js file, we configure the mock server. Using the mock server in this tutorial allows us to easily run the code even without network connection and without the need of having a remote server for our application data.

    The metadata.xml file used by the mock server describes our OData service. The service only has two OData entities:
    • Employee

      An employee has typical properties like FirstName and LastName as well as a navigation property to a resume entity referenced by a ResumeID. Of course, the entity also has an ID property: EmployeeID. The corresponding EntitySet is Employees. The actual test data containing several employees is located in the webapp/localService/mockdata/Employees.json file.

    • Resume

      In our case, we want to keep the resume of employees very simple. Therefore, we just have simple properties of type Edm.String. The properties are Information, Projects, Hobbies and Notes; all of them contain textual information. The entity has an ID property ResumeID and the corresponding EntitySet is Resumes. The resume data for an employee is located in file webapp/localService/mockdata/Resumes.json.

  • Configuration of the App

    In the webapp/manifest.json descriptor file, we configure our app. The descriptor file contains the following most interesting sections:

      In this section we reference an file and use a special syntax to bind the texts for the title and description properties.

      In the dataSources part, we tell our app where to find our OData service employeeRemote. As you might guess, the uri correlates to the rootUri of our mock server instance which can be found in webapp/localService/mockserver.js. It is important that these two paths match to allow our mock server to provide the test data we defined above. The localUri is used to determine the location of the metadata.xml file.

    • sap.ui5

      Under sap.ui5 we declare with the rootView parameter that our sap.ui.demo.nav.view.App view shall be loaded and used as the rootView for our app. Furthermore, we define two models to be automatically instantiated and bound to the i18n component and a default model "". The latter references our employeeRemote dataSource which is declared in our section as an OData 2.0 data source. The i18n file can be found at webapp/i18n/ This data source will be mocked by our mock server.

So far we have a basic app that does not really have any navigation or routing implemented. This will change in the next steps when we implement our first navigation features.
