Step 11: Assign Multiple TargetsLocate this document in the navigation structure

In this step, we will add a new button to the home page to illustrate the usage of multiple targets for a route. When the button is pressed, a new page opens that contains two parts: a header part at the top and a content part. The content part displays a table of employees that can be sorted and searched. We will use the array notation in the routing configuration to assign multiple targets to a route - a feature that we have not yet introduced.

Figure 1: New button Show Employee Overview

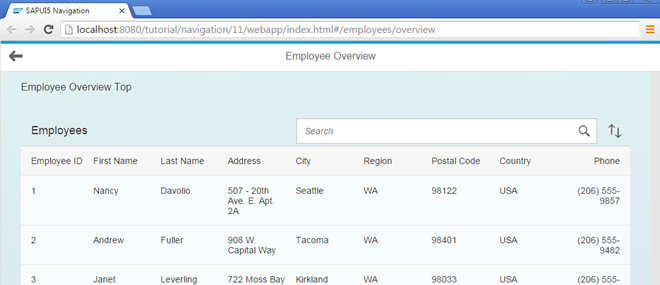

Figure 2: Employee Overview with search field
Figure 3: Sort options for the Employee Overview

You can view and download all files in the Explored app in the Demo Kit under Routing and Navigation - Step 11.

Figure 4: Folder Structure for this Step
	<Page title="{i18n>homePageTitle}" class="sapUiResponsiveContentPadding">
			<Button id="displayNotFoundBtn" text="{i18n>DisplayNotFound}" press="onDisplayNotFound" class="sapUiTinyMarginEnd"/>
			<Button id="employeeListBtn" text="{i18n>ShowEmployeeList}" press="onNavToEmployees" class="sapUiTinyMarginEnd"/>
			<Button id="employeeOverviewBtn" text="{i18n>ShowEmployeeOverview}" press="onNavToEmployeeOverview" class="sapUiTinyMarginEnd"/>


First we add a new button to the Home view and add an event handler for the press event.

], function (BaseController) {
	"use strict";
	return BaseController.extend("sap.ui.demo.nav.controller.Home", {
		onNavToEmployees : function (oEvent){
		onNavToEmployeeOverview : function (oEvent) {


As you know already from the previous steps, we add the press event handler onNavToEmployeeOverview. It navigates to the route employeeOverview which does not exist yet, so let’s create it.

	"_version": "1.1.0",
	"": {
	"sap.ui": {
	"sap.ui5": {
		"routing": {
			"config": {
				"routerClass": "sap.m.routing.Router",
				"viewType": "XML",
				"viewPath": "sap.ui.demo.nav.view",
				"controlId": "app",
				"controlAggregation": "pages",
				"transition": "slide",
				"bypassed": {
					"target": "notFound"
			"routes": [{
				"pattern": "",
				"name": "appHome",
				"target": "home"
			}, {
				"pattern": "employees",
				"name": "employeeList",
				"target": "employees"
			}, {
				"pattern": "employees/overview",
				"name": "employeeOverview",
				"target": ["employeeOverviewTop", "employeeOverviewContent"]
			}, {
				"pattern": "employees/{employeeId}",
				"name": "employee",
				"target": "employee"
			}, {
				"pattern": "employees/{employeeId}/resume:?query:",
				"name": "employeeResume",
				"target": "employeeResume"
			"targets": {
				"resumeTabNotes": {
					"parent": "employeeResume",
					"viewPath": "sap.ui.demo.nav.view.employee",
					"viewName": "ResumeNotes",
					"controlId": "notesTab",
					"controlAggregation": "content"
				"employeeOverview": {
					"viewPath": "sap.ui.demo.nav.view.employee.overview",
					"viewName": "EmployeeOverview",
					"viewLevel" : 2
				"employeeOverviewTop": {
					"parent": "employeeOverview",
					"viewPath": "sap.ui.demo.nav.view.employee.overview",
					"viewName": "EmployeeOverviewTop",
					"controlId": "EmployeeOverviewParent",
					"controlAggregation": "content"
				"employeeOverviewContent": {
					"parent": "employeeOverview",
					"viewPath": "sap.ui.demo.nav.view.employee.overview",
					"viewName": "EmployeeOverviewContent",
					"controlId": "EmployeeOverviewParent",
					"controlAggregation": "content"


We extend our current routing configuration with a new route employeeOverview. Note that this route has to be configured before the employee route, else the employee route would be matched with a hash like /#/employees/overview. The new route employeeOverview references two targets at the same time with an array notation: employeeOverviewTop and employeeOverviewContent. As you can see here, a route can reference an arbitrary number of targets that will be displayed when the route is matched.

Both targets employeeOverviewTop and employeeOverviewContent reference the target employeeOverview as their parent target because we want to place them both inside the parent. Please also note that we also introduce a new layer overview in the viewPath property.

The order of the routing configuration matters here, because the router stops matching additional routes when the first match is found. You can override this behavior if you set parameter greedy to true on the route. Then the route will always be matched when the pattern matches the current URL, even if another route has been matched before. The greedy option comes from the underlying Crossroads.js library, a popular routing library. A common use case for using greedy is configuring targets without views and then listening for route-matched events.

Now we create both targets employeeOverviewTop and employeeOverviewContent as well as their parent target employeeOverview. On the parent target we set viewLevel to 2 to ensure a correct transition animation. In the targets, we also configure where the corresponding views of the children shall be displayed by setting the parameters controlId and controlAggregation to a control ID of a sap.ui.layout.HorizontalLayout that we are about to create in a new view. You should be familiar with this configuration from the last step.

The router makes sure that the parent view is loaded in addition to the target view when a corresponding route has been matched and the targets are displayed. The referenced views are displayed automatically at the configured place in the parent’s view, in our case in the content aggregation of the page control. We have mentioned three different views that we still need to add to the app to make the configuration work:
  • EmployeeOverview

  • EmployeeOverviewTop

  • EmployeeOverviewContent

webapp/view/employee/overview/EmployeeOverview.view.xml (New)
	<Page id="EmployeeOverviewParent" title="{i18n>EmployeeOverview}"
			<!-- inserted by routing -->

First we create the parent view by creating the folder overview under webapp/view/employee and placing the file EmployeeOverview.view.xml into that folder. This view contains a Page control that is referenced from the targets in our manifest.json descriptor file. The content aggregation of the page will be filled by the router with the top and content part when the corresponding route has been hit.

webapp/controller/employee/overview/EmployeeOverview.controller.js (New)
], function (BaseController) {
	"use strict";
	return BaseController.extend("sap.ui.demo.nav.controller.employee.overview.EmployeeOverview", {

The controller does not contain any logic yet, but we will add back navigation features here in the next steps.

webapp/view/employee/overview/EmployeeOverviewTop.view.xml (New)
<mvc:View xmlns="sap.m" xmlns:mvc="sap.ui.core.mvc" class="sapUiMediumMarginBottom">
	<Title text="{i18n>EmployeeOverviewTop}" />

Create the file EmployeeOverviewTop.view.xml and place it in the webapp/view/employee/overview folder. This view displays a static text for illustration purposes. Change it according to your own requirements. We don’t need a controller for this view

webapp/view/employee/overview/EmployeeOverviewContent.view.xml (New)
	<Table id="employeesTable"
				<Title text="{i18n>Employees}" level="H2"/>
				<ToolbarSpacer />
				<SearchField id="searchField" search="onSearchEmployeesTable" width="50%"/>
				<Button icon="sap-icon://sort" press="onSortButtonPressed" />
			<Column id="employeeIDCol"><Text text="{i18n>EmployeeID}"/></Column>
			<Column id="firstNameCol" demandPopin="true"><Text text="{i18n>FirstName}"/></Column>
			<Column id="lastNameCol" demandPopin="true"><Text text="{i18n>LastName}"/></Column>
			<Column id="addressCol" minScreenWidth="Tablet" demandPopin="true"><Text text="{i18n>Address}"/></Column>
			<Column id="cityCol" minScreenWidth="Tablet" demandPopin="true"><Text text="{i18n>City}"/></Column>
			<Column id="regionCol" minScreenWidth="Tablet" demandPopin="true"><Text text="{i18n>Region}"/></Column>
			<Column id="postalCodeCol" minScreenWidth="Tablet" demandPopin="true"><Text text="{i18n>PostalCode}"/></Column>
			<Column id="countryCol" minScreenWidth="Tablet" demandPopin="true"><Text text="{i18n>Country}"/></Column>
			<Column id="homePhoneCol" minScreenWidth="Tablet" demandPopin="true" hAlign="Right"><Text text="{i18n>Phone}"/></Column>
					<Text text="{EmployeeID}"/>
					<Text text="{FirstName}"/>
					<Text text="{LastName}"/>
					<Text text="{Address}"/>
					<Text text="{City}"/>
					<Text text="{Region}"/>
					<Text text="{PostalCode}"/>
					<Text text="{Country}"/>
					<Text text="{HomePhone}"/>

Create the file EmployeeOverviewContent.view.xml in the webapp/view/employee/overview folder. This view displays a responsive table with several columns containing employee data like Employee ID, First Name, Last Name and so on. In the headerToolbar, we add the SearchField and a Button. The SearchField in the header area allows to search in the table. The Button next to it opens a dialog to adjust the sorting of the table.

webapp/controller/employee/overview/EmployeeOverviewContent.controller.js (New)
], function (BaseController, Filter, FilterOperator, Sorter) {
	"use strict";
	return BaseController.extend("sap.ui.demo.nav.controller.employee.overview.EmployeeOverviewContent", {
		onInit: function () {
			this._oTable = this.getView().byId("employeesTable");
			this._oVSD = null;
			this._sSortField = null;
			this._bSortDescending = false;
			this._aValidSortFields = ["EmployeeID", "FirstName", "LastName"];
			this._sSearchQuery = null;
		onSortButtonPressed : function (oEvent) {;
		onSearchEmployeesTable : function (oEvent) {
			var sQuery = oEvent.getSource().getValue();
			this._applySearchFilter( oEvent.getSource().getValue() );
		_initViewSettingsDialog : function () {
			var oRouter = this.getRouter();
			this._oVSD = new sap.m.ViewSettingsDialog("vsd", {
				confirm: function (oEvent) {
					var oSortItem = oEvent.getParameter("sortItem");
					this._applySorter(oSortItem.getKey(), oEvent.getParameter("sortDescending"));
			// init sorting (with simple sorters as custom data for all fields)
			this._oVSD.addSortItem(new sap.m.ViewSettingsItem({
				key: "EmployeeID",
				text: "Employee ID",
				selected: true		 // we do this because our MockData is sorted anyway by EmployeeID
			this._oVSD.addSortItem(new sap.m.ViewSettingsItem({
				key: "FirstName",
				text: "First Name",
				selected: false
			this._oVSD.addSortItem(new sap.m.ViewSettingsItem({
				key: "LastName",
				text: "Last Name",
				selected: false
		_applySearchFilter : function (sSearchQuery) {
			var aFilters, oFilter, oBinding;
			// first check if we already have this search value
			if (this._sSearchQuery === sSearchQuery) {
			this._sSearchQuery = sSearchQuery;
			// add filters for search
			aFilters = [];
			if (sSearchQuery && sSearchQuery.length > 0) {
				aFilters.push(new Filter("FirstName", FilterOperator.Contains, sSearchQuery));
				aFilters.push(new Filter("LastName", FilterOperator.Contains, sSearchQuery));
				oFilter = new Filter({ filters: aFilters, and: false });  // OR filter
			} else {
				oFilter = null;
			// update list binding
			oBinding = this._oTable.getBinding("items");
			oBinding.filter(oFilter, "Application");
		 * Applies sorting on our table control.
		 * @param {string} sSortField	  the name of the field used for sorting
		 * @param {string} sortDescending  true or false as a string or boolean value to specify a descending sorting
		 * @private
		_applySorter : function (sSortField, sortDescending){
			var bSortDescending, oBinding, oSorter;
			// only continue if we have a valid sort field
			if (sSortField && this._aValidSortFields.indexOf(sSortField) > -1) {
				// convert the sort order to a boolean value
				if (typeof sortDescending === "string") {
					bSortDescending = sortDescending === "true";
				} else if (typeof sortDescending === "boolean") {
					bSortDescending =  sortDescending;
				} else {
					bSortDescending = false;
				// sort only if the sorter has changed
				if (this._sSortField && this._sSortField === sSortField && this._bSortDescending === bSortDescending) {
				this._sSortField = sSortField;
				this._bSortDescending = bSortDescending;
				oSorter = new Sorter(sSortField, bSortDescending);
				// sync with View Settings Dialog
				this._syncViewSettingsDialogSorter(sSortField, bSortDescending);
				oBinding = this._oTable.getBinding("items");
		_syncViewSettingsDialogSorter : function (sSortField, bSortDescending) {
			// the possible keys are: "EmployeeID" | "FirstName" | "LastName"
			// Note: no input validation is implemented here

Finally create the controller for the Employee Overview page in the webapp/controller/employee/overview folder. It basically sets up a ViewSettingsDialog to sort and filter the table of employees and implements event handlers for the search field and for the sorting of the table.

There is nothing special about this implementation. If you are interested in how to set up a table with sorting and filtering you can check the corresponding steps of the Walkthrough tutorial or the examples in the Explored app. We will mainly make use of the UI and the functionality for showing additional navigation and routing features. Therefore, we suggest copying the code and trying it out.

Open webapp/index.html#/employees/overview and check the new views. As you can see, the three views are wired together automatically by the router based on our configuration in the descriptor. In the top area of the page, you see a static text and below you see the table filled with data from our test service. The whole routing functionality that we see in this example is implemented by referencing two targets from one route.

Of course, you can also search the table and change the sorting. When the sorting dialog opens, it creates a block layer so that the back button and other controls cannot be accessed. However, you can still use the back button of the browser. As you can see, the dialog is closed automatically by the router before navigating.

The default behavior of the sap.m router is that all dialogs are closed when the hash changes (i.e. when calling navTo, display or pressing the back button of the browser). You can change this default behavior by calling getTargetHandler().setCloseDialogs(false) on the router or on the Targets object.

However, we have one problem yet to solve: the search and table ordering are not bookmarkable. Fortunately, we have additional navigation features at hand and you will see how this works in the next steps

EmployeeOverview=Employee Overview
ShowEmployeeOverview=Show Employee Overview

EmployeeOverviewTop=Employee Overview Top

EmployeeID=Employee ID

Add the new texts to the properties file.
