This graphic is explained in the accompanying text Building Your First BAdI  Locate the document in its SAP Library structure

Use Case

A developer needs to calculate the VAT of different ledger entries. The entries have to be passed to a method that calculates and returns the VAT. Since the developer does not know what the VAT in a specific country is, he or she defines a BAdI with the method get_vat. This method must return the VAT for a particular value that is passed to the method get_vat.

Creating an Enhancement Spot

The first thing you need when creating a BAdI is a container for the BAdI. For that purpose, you need to create a (simple) enhancement spot. This is the container in which you develop your BAdI.

...

       1.      In the Object Navigator (transaction SE80), navigate to the package, in which you want to create the enhancement spot.

       2.      In the context menu of the package, choose Create Enhancement Enhancement Spot.

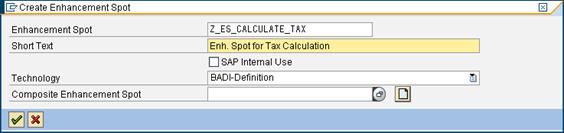

The following dialog appears:

This graphic is explained in the accompanying text

       3.      Enter a name and a short text description for the enhancement spot.

Creating a BAdI

...

       1.      To create a BAdI within the new enhancement spot, choose the Create BAdI pushbutton on the left, as shown in the figure below:

This graphic is explained in the accompanying text



       2.      In the dialog window that appears, enter the BAdI name z_badi_calc_vat and a short description.

You now have a BAdI in your enhancement spot.

       3.      Deselect the Multiple Use option because for the current calculation you need a single-use BAdI:

The BAdI Interface

Up to now, you still do not have a BAdI. You need an interface where you can define the methods which determine what you can do with your BAdI.

...

       1.      Choose the arrow in front of the BAdI name.

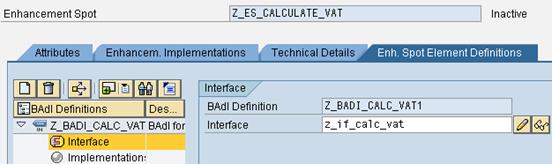

       2.      Double-click on the Interface icon.

Enter a name for the interface. You can choose an existing name or create a new one.

This graphic is explained in the accompanying text

       3.      Choose the Change pushbutton.

This leads you to the Class Builder where you can create the methods you need for your BAdI. You simply need to type in the name of the method get_vat and enter the parameters you need.

Note

A BAdI interface has to implement the interface if_badi_interface. But if you create a BAdI interface in the way shown above, this marker interface is already integrated in the BAdI interface.

This graphic is explained in the accompanying text

       4.      Determine the parameters of the method:

This graphic is explained in the accompanying text

       5.      Save and activate the interface and the spot.

By completing the steps above, you have created an enhancement spot and a BAdI with an interface. The interface has one method so far.

However, just building a BAdI is not enough as it does not do anything. You need a BAdI instance and this instance must be called somewhere in the code. Since the BAdI only defines an interface, you need a class that implements this interface.

Note

A BAdI definition is the place to insert an object plug-in that does something at runtime. You still need an object that is plugged in to get something done.

Writing the Source Code

Now you need to write some ABAP code to use the BAdI. You need a variable that can refer to the BAdI and some variables that are given as actual parameters to the BAdI method.

Next, you need to create a handle for that BAdI and call the BAdI method get_vat. The respective commands are GET BADI and CALL BADI.

DATA: handle TYPE REF TO z_badi_calc_vat,

sum TYPE p,

vat TYPE p,

percent TYPE p.

sum = 50.

GET BADI handle.

CALL BADI handle->get_vat

EXPORTING im_amount = sum

IMPORTING ex_amount_vat = vat

         ex_percent_vat = percent.

WRITE: 'percentage:', percent, 'VAT:', vat.

A Fallback Class

If you run the program at this stage, it dumps. This is because it is mandatory to have exactly one active implementation for a single-use BAdI. You can handle this error by catching the respective exception cx_badi_not_implemented.

The better solution is to use a fallback class. This class is used if there is no active BAdI implementation.

The GET BADI command returns a handle to an instance of the fallback class and the respective CALL BADI calls the methods of the fallback class instance. As soon as there is an active BAdI implementation, the fallback class is no longer used at runtime.

Using a fallback class serves two functions at once:

      The program runs with a single-use BAdI without throwing an exception.

      It is guaranteed that the fallback class is not used any more as soon as a BAdI implementation is supplied. The fallback class is selected conditionally. This is important because in most cases the BAdI provider does not know the details of some process. This is why a BAdI is used.

To add a fallback class, proceed as follows:

...

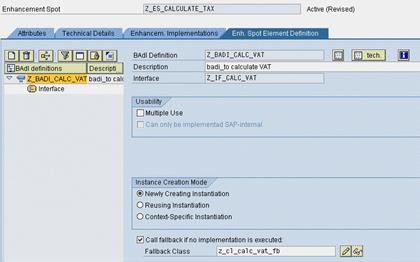

       1.      Select the Call fallback class if no implementation is executed option and enter a name for the class:

This graphic is explained in the accompanying text

       2.      Choose Change to go back to the Class Builder.

The respective method of the BAdI interface is already automatically defined. You only have to implement it:

DATA: percent TYPE p VALUE 20.

ex_amount_vat = im_amount * percent / 100.

ex_percent_vat = percent.

       3.      Save and activate the class.

       4.      Navigate back to the enhancement spot and activate it.

       5.      Run the program.

The result should be:

percentage: 20 VAT: 10.

Next step is: How to Implement a BAdI and Use a Filter
