● Delete with mouse. In order for angles to be deleted, you must drag an angle over another angle in such a way that the connection alignment can be optimized.
1. Right-click on the angle of the connection.
2. Click on Delete angle.

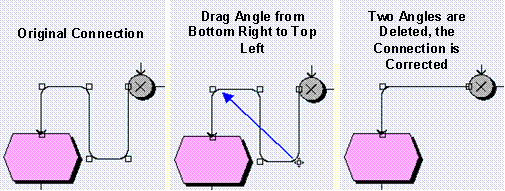

1. Click on the angle you want to delete and hold down the mouse button.
2. Drag the angle over another angle.
3. Release the mouse button.
One or more angles are deleted and the connection alignment is optimized.
