Background documentation Organization of ESR Content  Locate the document in its SAP Library structure

From the point of view of software logistics, a product is a shipment unit that can exist in different versions. A product comprises one or more software components that in turn can also have different software component versions. The System Landscape Directory stores the information about which version of a product requires which software component versions (see also: Products and Software Components). Software component versions and product versions are found in the ES Builder:

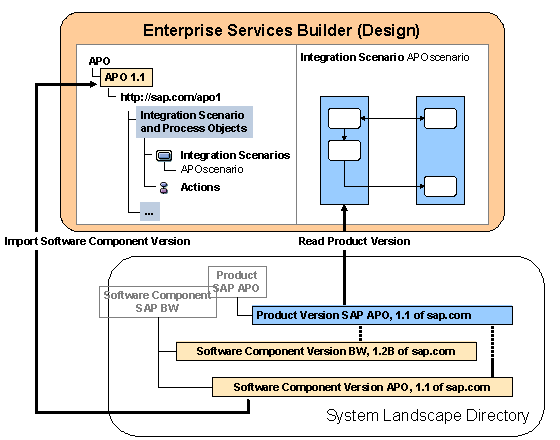

This graphic is explained in the accompanying text

In this example, the product version SAP APO 1.1 comprises the software component versions BW 1.2B and APO 1.1. The corresponding information about the product version is located in the System Landscape Directory. Since not all software component versions from the System Landscape Directory are relevant for the Enterprise Services Repository, you must selectively import those software component versions that are to be made available from the Enterprise Services Repository content (ESR content). Once you have imported these software component versions they are displayed in the navigation tree. The graphic shows the expanded hierarchy for software component version APO 1.1. The development of design objects in the ES Builder is therefore primarily associated with the software component versions.

After you have imported a software component version, create one or more namespaces for it to separate the design objects within the software component versions into more manageable development units. Note that the object references within the ES Repository are restricted to ensure that objects that belong together are consistently shipped together.

The product version is not visible in the navigation tree, unlike the software component version. This is because the software component versions that make up a product version have already been defined in the System Landscape Directory.


If you are developing services for A2A integration, create the reference to product versions when describing an integration scenario. When creating an application component (as a communication party) you can assign a product version to it.
