If problems occur during the availability monitoring with CCMSPING, work through the points below.
The following points apply for CCMSPING agents, which are actively reporting to the central monitoring system (registration with the -push option).
What do I need to do, if CCMSPING does not provide availability values with the required frequency?
In the case of very large IT landscapes to be monitored, it is possible that CCMSPING cannot perform the entire check in one minute. In this case, you have two options:
What do I need to do, if the logon check fails, although it is possible to log on to the application server?
Check whether the following steps improve the situation:
I want to activate debug tracing. What options do I have?
You have two options for activating tracing for a CCMSPING:
If TRACE=1, the trace information is written to the Log log attribute of the Data Supplier monitoring object. You can find this in the CCMS Selfmonitoring Monitor, in the instance-specific subtree of the server with which CCMSPING is registered. Select the MTE and choose (Details) to display all of the messages of the trace. Actions of the ABAP infrastructure for availability monitoring are written in this trace.
If TRACE=5, the function module for collecting the availability values of the relevant CCMSPING starts an endless loop, so that you can start debugging the ABAP processing using transaction SM50.
I have changed the configuration of the availability monitoring. How do I determine whether the responsible CCMSPING has received these changes?
The table ALAVLCTRL (see above) has a TIMESTAMP entry. The row CCMS_SYSTEM_PING_DEST contains the timestamp of your last change to the monitoring configuration in this entry, that is, the last time at which you changed the monitoring settings. For each registered CCMSPING agent, the TIMESTAMP entry contains the status of its worklist, that is, the systems and instances that this CCMSPING is to monitor.
Every CCMSPING monitors this timestamp every minute. If the status of the agent is currently older than the status of the last configuration change, the agent downloads its current worklist from CEN and updates its timestamp. The TIMESTAMP entry of the agent is then the same as the corresponding entry in the row CCMS_SYSTEM_PING_DEST. You can therefore use the timestamps to check whether the agent is working with its current worklist.
How do I determine whether a CCMSPING agent is actively reporting availability values to CEN?
If you have registered a CCMSPING agent with a CEN with the -push option, the following monitoring object is displayed in the CCMS Selfmonitoring Monitor for System-Wide Data there:
How do I determine which CCMSPING agents are registered with CEN with the -push option, and whether these agents are running correctly?

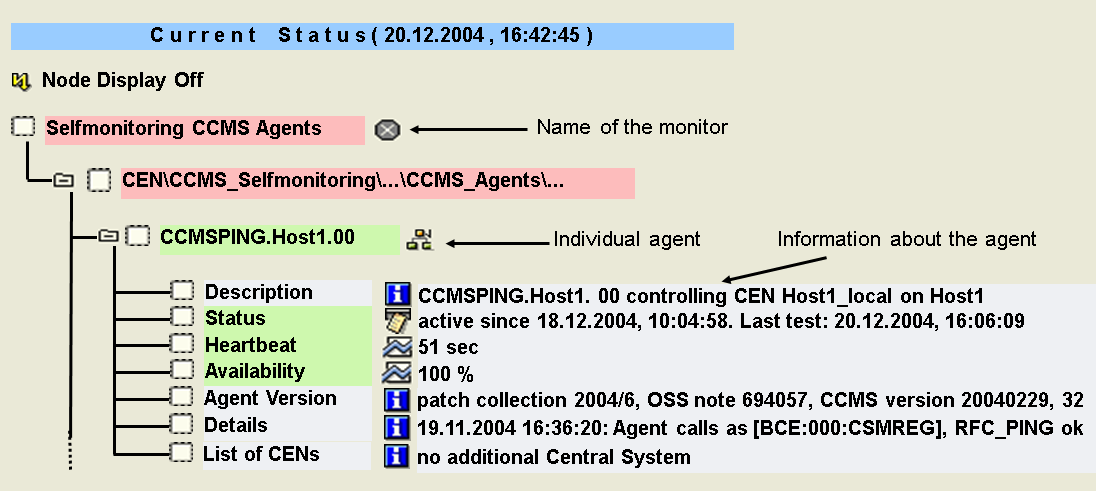

Agents that are registered with CEN with the -push option are monitored by the monitoring architecture. The results are displayed in two places:
On the tab page Agents for System <SysID> → CCMSPING Destination of the technical topology display, you can execute the following functions (see also Monitoring CCMS Agents in the Topology Display):
The following data is displayed there:
