 Displaying the Technical View: Info on MTELocate this document in the navigation structure

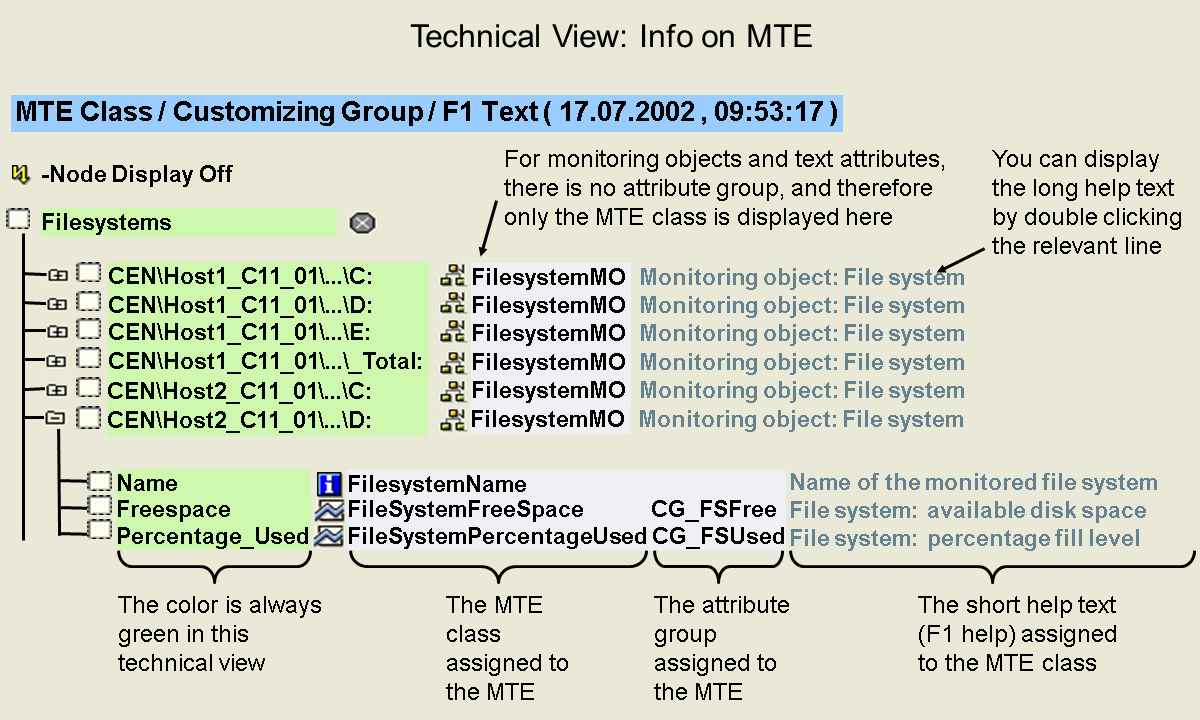

MTE classes and attribute groups group nodes of the alert monitoring tree by topic and therefore simplify Customizing, as you no longer need to adjust the properties of all affected monitoring tree elements (MTEs), but rather only of the corresponding MTE class or attribute group. You can find out the assigned MTE class and attribute group by selecting an MTE and choosing Properties. This method is very time-consuming for obtaining an overview of the assigned MTE classes and attribute groups of the MTEs of an entire monitor. The technical view Info on MTE exists as an alternative for this purpose. This view displays the following information for the MTEs of the entire monitor:

  • ·        MTE class to which the MTE belongs
  • ·        Attribute group to which the MTE belongs (for performance, status, and log attributes)
  • ·        Short text that is assigned to the MTE class as help (usually activated using the F1 key)

To additionally display the long help text for an MTE, choose the relevant MTE by double clicking it.


·         The nodes are always colored green in the technical view Info on MTE; as it contains no alert information.

·         If the corresponding general or specific properties of the MTE are not determined by an MTE class or attribute group, but rather individually for this MTE, no class or group is displayed in this view.


To activate the Info on MTE technical view, follow the procedure below:

  1. 1.      Choose CCMS → Control/Monitoring → Alert Monitor, or call transaction RZ20.
  2. 2.      Expand the monitor set that contains the monitor that you require, and choose Load Monitor.
  3. 3.      Choose Views → Info on MTE. The alert tree now no longer displays the alert status and reported values, but information about the MTEs of the monitor.
