Definition

The SAP graphical user interface (SAP GUI) consists of the technical features that enable you to exchange information with the SAP System (by entering data, choosing functions, and so on). For Release 4.6, SAP has made extensive changes to the SAP GUI design.

Use

New Display Options

The redesigned features include:

Structure

The new SAP GUI consists of two main screen areas.

The screen header consists of:

The screen body is the area between the screen header and the status bar.

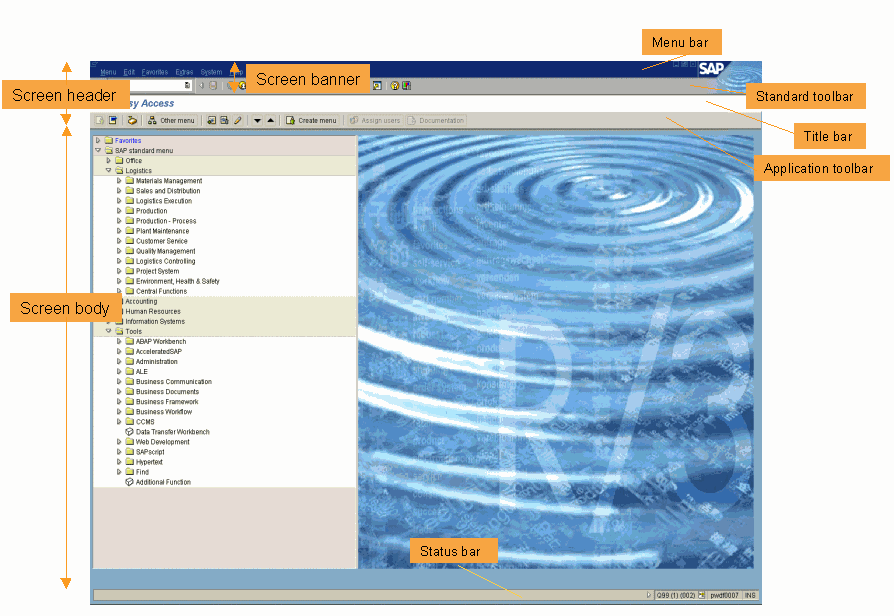

A typical example of an SAP screen (here, the SAP Easy Access initial screen) with the new SAP GUI is shown below:

This graphic is explained in the accompanying text

Changes to the Screen Header

Screen Banner

In previous releases, the title bar and menu bar were at the top of the R/3 window. As of Release 4.6, a screen banner replaces these two elements. The screen banner consists of:

GUI interaction buttons

The Minimize, Maximize, and Close buttons are no longer in the top right-hand corner. They are now slightly to the left, beside the SAP logo:

This graphic is explained in the accompanying text

You can also find these GUI interaction options in the dropdown menu that appears when you choose This graphic is explained in the accompanying text in the top left-hand corner.

Command field

By default, the command field is closed. To display it, choose the arrow to the left of the Save icon: This graphic is explained in the accompanying text

The command field appears: This graphic is explained in the accompanying text

To hide it, choose the arrow to the right (outside) of the field.

To display a list of the transactions you used last, choose the dropdown arrow This graphic is explained in the accompanying text at the right-hand end of the field.

In the top right-hand corner, the ripple animation indicates data request activity: This graphic is explained in the accompanying text. This was previously shown by a change of color in the status fields.

Changes to the Screen Body

Screen Elements and Layout

Status Bar

By default, the status fields appear at the far right: This graphic is explained in the accompanying text

To hide these fields, choose the arrow pointing to the right: This graphic is explained in the accompanying text

When the fields are hidden, the arrow points in the other direction: This graphic is explained in the accompanying text

To display the status fields, choose the arrow pointing to the left: This graphic is explained in the accompanying text

Icons

SAP has changed the graphical design of all icons used in the SAP System.

Changes to GUI Controls

SAP has also redesigned screen elements such as trees, tables, and tabs.

GUI Interaction Principles

The GUI interaction principles such as minimizing, maximizing, canceling, and dropdown menus remain the same.
