To define the input field of a parameter as a checkbox, you use the following syntax:
PARAMETERS <p> ...... AS CHECKBOX ......
Parameter <p> is created with type C and length 1. In this case, you may not use the additions TYPE and LIKE. Valid values for <p> are ' ' and 'X'. These values are assigned to the parameter when the user clicks the checkbox on the selection screen.
If you use the TYPE addition to refer to adata type in the ABAP Dictionary of type CHAR and length 1 for which 'X' and ' ' are defined as valid values in the domain, the parameter automatically appears as a checkbox on the selection screen.
PARAMETERS: A AS CHECKBOX,
B AS CHECKBOX DEFAULT 'X'.

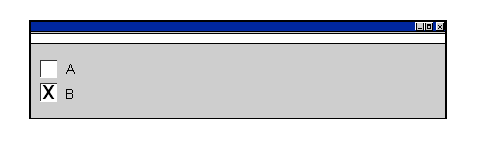

The selection screen looks as follows:
Two checkboxes appear on the left side of the selection screen with the selection text appearing on their right. Checkbox B has the default value of 'X'.
