SNC-Protected Communication Paths in SAP Systems
Use
The following components support the use of SNC for connections.
|
From |
To |
Comment |
|
SAP GUI for Windows or SAP GUI for Java |
SAP system application server |
- |
|
SAP system application server |
SAP lpd |
- |
|
External RFC or CPIC program |
SAP system application server |
Example: SAP Java Connector |
|
SAP system application server |
External RFC or CPIC program |
Example: SAP Java Connector |
|
SAProuter |
SAP system application server |
- |
|
SAProuter |
SAProuter |
- |
|
Internet Transaction Server |
SAP system application server |
- |

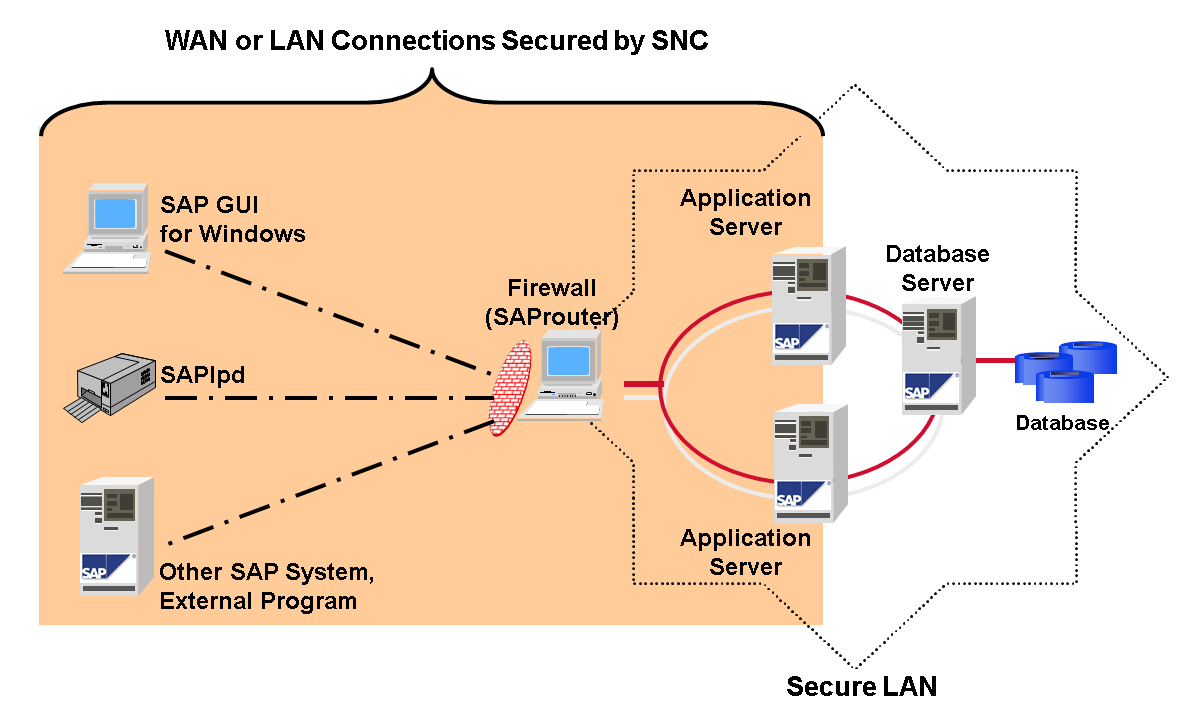

You cannot apply SNC protection to the communication path between your application servers and your database. Therefore, we recommend that you keep your application and database servers in a secured LAN that is protected with a firewall and SAProuter (see the following figure).

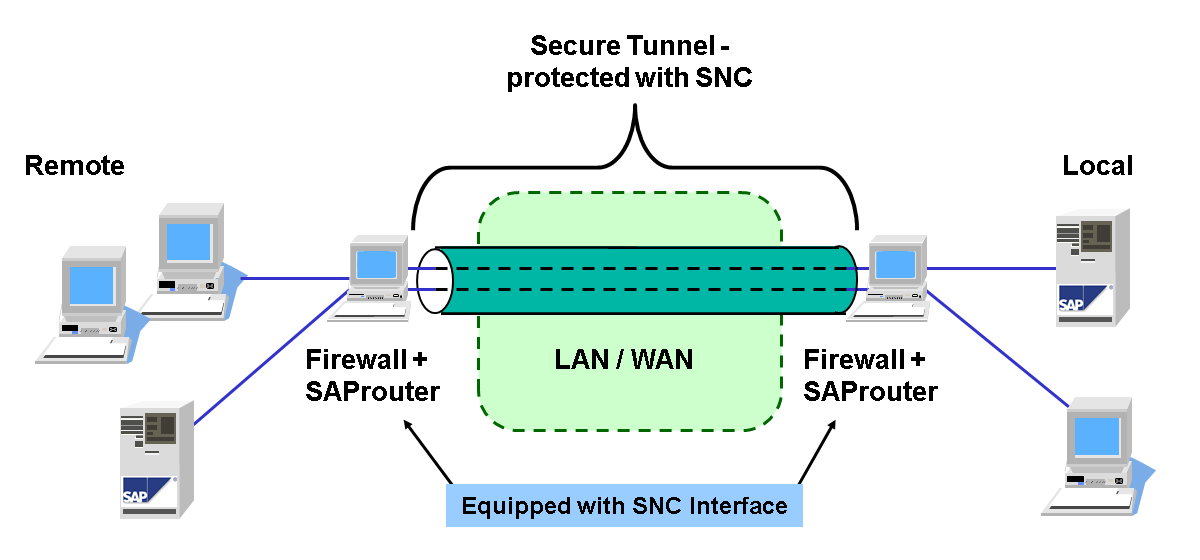

You can also use SNC between two SAProuters to build a secure tunnel between networks (see the following figure).
