Ports for Structure Graphics Proxy

Use

The customizing bundles are assigned to ports in the graphics proxy. However, the combinations of ports and bundles are NOT arbitrary. You must ensure that you assign the right bundles to the right ports.

Prerequisites

You have already created an instance of the graphics proxy and of the customizing bundles to be assigned to the ports.

Features

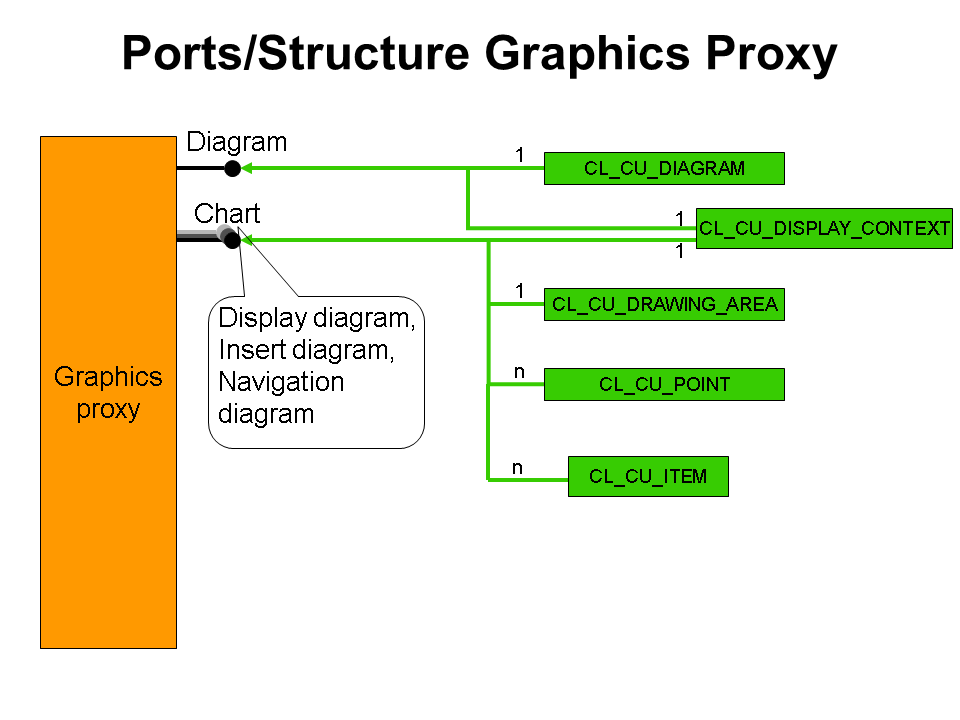

The graphic above shows the structure graphics proxy CL_GUI_GP_HIER with its ports. The black dots on the right of the graphics proxy are the ports. The customizing objects CL_CU_DIAGRAM, CL_CU_DISPLAY_CONTEXT, CL_CU_DRAWING_AREA and so on are assigned to the ports.

Every point bundle can have an associated list of item bundles.

For information on permitted combinations of ports and bundles for structure proxies, see the class documentation of CL_GUI_GP_HIER.
