Range of Coverage
For displaying results in the MRP monitor, on the Key Figures tab, you can select which rules are to apply for calculating the range of coverage.

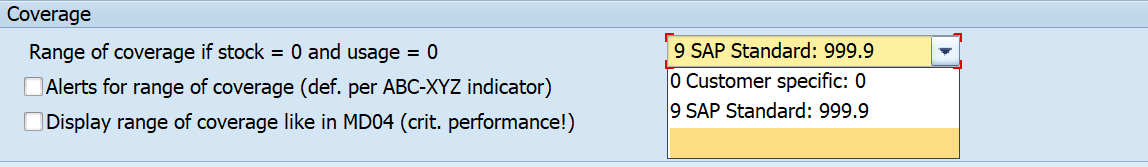

In the Coverage area, you can make settings for calculating individual ranges of coverage.
Outputting Range of Coverage Values
If the range of coverage is greater than 999, then 999 is displayed in the standard system. Alternatively, 0 can also be output on a customer-specific basis.
Ranges of Coverage from MD04
You can display the ranges of coverage from transaction MD04.
Alerts for Range of Coverage
If you want to receive range of coverage alerts (notifications), you can see two new columns on the result screen:
In the Alert Limit column, the notification limit for the ABC-XYZ indicator is displayed.
A traffic light icon is displayed in the Alert Coverage column. It displays how the calculated range of coverage in days behaves for the notification limit.The traffic light colors have the following meaning:
- Green if limit value > coverage
- Yellow if limit value = coverage
- Red if limit value < coverage
- Gray if not classified
Range of Coverage (Average)
In addition to individual coverage ranges, you can calculate the average range of coverage. The average range of coverage combines the range of coverage of several materials. It is relevant for the range of coverage of the groups in the matrix and the folder view.
Eight calculation procedures are implemented in the MRP monitor:
